ODM PID Self Tuning Industrial Control PLC FX3U FX3S Compatible

  • 1
  • 2
  • 3

Brand Name : Coolmay

Model Number : CX3G-32M

Certification : CE Certificate

Place of Origin : China

MOQ : 1 Unit

Price : Details Need To Be Negotiated

Payment Terms : TT,Paypal, Western Union, Credit Card

Supply Ability : 15000 Units Per Week

Delivery Time : 3-5 Days After Payment Confirmed

Packaging Details : Carton

Digital I/O : 16DI/16DO

Analog(Optional) : Max 2AI

High Speed Pulse : Support

High Speed Counting : Support

Com Ports : 2*RS485, 1*232,1*mini type B port

Software : Works 2

Contact Now

ODM PID Self Tuning Industrial Control PLC FX3U FX3S Compatible

Manufacturer Price Pwm PID Self-tuning Industrial Control PLC Compatible With FX3U FX3S


Quick Details:

  1. Powerful,compatible with FX3G/FX3U/FX3S PLC,high processing speed (supports Ladder diagram and SFC language,does not support structured programming/labels)
  2. Upper computer programming software compatible with Works2
  3. High speed counter,regular as single phase 6 channels 60 KHz or AB(Z) phase 2 channels 60KHz+AB phase 1 channel 10KHz.
  4. High speed pulse, regular as 8 channels Y0-Y3 in 100KHz,Y4-Y7 in 10KHz
  5. Special encryption, prevent illegal reading thoroughly.8-bit encryption,12345678 as password can thoroughly prevent reading of ladder logic program.
  6. Support multiple types analog individually or mixed ones for analog output and input
  7. Clock supported, rechargeable battery adopted.
  8. 32K steps of program capacity, 32K power-failed holding registers which support interrupting, linear arc interpolation and PID auto-tuning.
  9. With two PLC programming ports. CX3G PLC has one Mini B USB port with faster downloading speed; one Rs232 programming port with 8 mouse holesockets.
  10. DCX3G series is the same with CX3G, but without the body case,and performance is the same as CX3G.
  11. Support Mitsubishi programming port protocol/ Modbus protocol/ Rs protocol/ BD board protocol, easily achieve PLC communication with plc and other devices


Specification:

Model CX3G-32M
Dimension
130*90*36mm
Cutout size
122*99mm
Installation
Fixed hole installation and DIN-Rail (35mm )
I/O level
Input: Passive NPN, public terminal isolated
Transistor output: NPN
Relay output: Normally open dry contact
Digital I/O
16DI/16DO
DO type
Relay(MR) or transistor(MT) or mixed(MRT)
(Relay output: max load 5A/ transistor output: max load 500mA)
High speed
counting
Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10 KHz
High speed
pulse
8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz
High-speed counting + high-speed pulse < 480KHz
Analog I/O
(optional)
2AI
AI type
(optional)
Type E/E_/K/K_/S/S_/T/T_/J/J_ thermocouple / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/
0~10V/ 0~5V/ 0-20mA/ 4-20mA/ -5V~5V/ -10V~10V
Default
1 Mini type B USB programming port, 1 RS232 programming port (Interface terminal is mouse female port with 8 holes), 2 RS485 COM ports
Optional
Default 2 RS485 COM ports can be customized as
1 RS485, 1 RS232 COM ports,
or 1 RS485 COM port, 1 CAN (2.0A/B),
or 1 RS232 COM port, 1 CAN (2.0A/B)
CX3G-48M can add Ethernet port.
Software
Compatible with WORKS 2

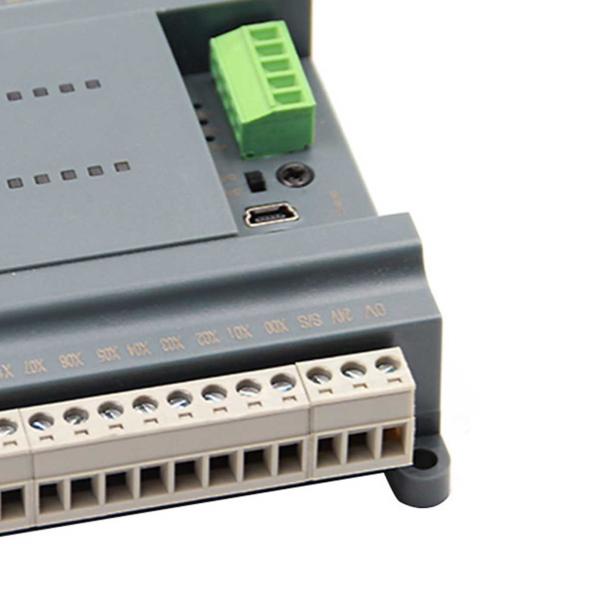

Detail Pictures:

ODM PID Self Tuning Industrial Control PLC FX3U FX3S CompatibleODM PID Self Tuning Industrial Control PLC FX3U FX3S Compatible

Purchase Note:

  1. It is Suggested to use WORKS 2 For CX3G PLC, which it is better compatible.
  2. ODM and OEM are support if order can be reach request quantity.
  3. More details you can offer as DI/DO,AI/AO, high speed requirements, com ports...... ,it will be more fast to decide final model.
  4. If you need special cable, please advise. ​

QFQ:

1) Are you a manufacturer or trade company?

We are manufacturer of PLC,HMI,HMI PLC combo and other industrial products for over 16 years, we have engineers for study & design and workers for produce and operate etc, we could support you one-stop products and service.

2) Do you have a CE certificate?

Yes, for the products we exported, we could offer the CE for your Customs.
3) How long about the delivery?
It depends on the order details, and usually, we could support the delivery within 2-7 working days after payment confirmed.
4) Payment terms:
We accept TT Bank Transfer, Paypal, Credit Card on Alibab, Western Union ect.
