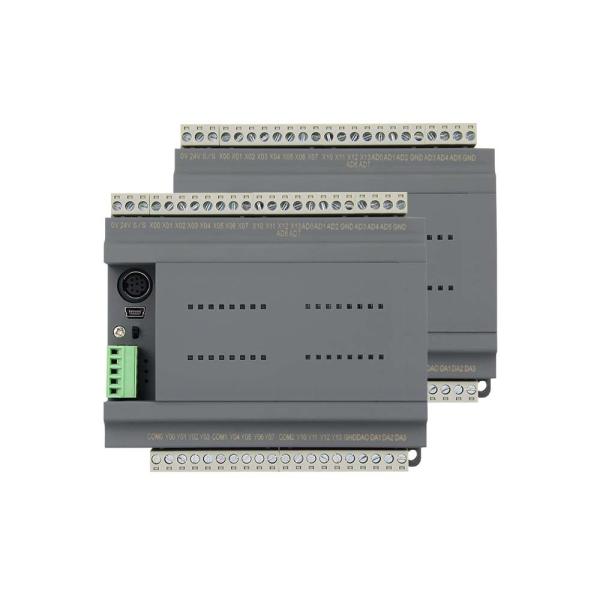

DC24V Transistor Outputs PLC Logic Controller 32K Steps Program Capacity

  • 1
  • 2

Brand Name : Coolmay

Model Number : CX3G-24MT-2AD-PT-485/485

Certification : CE, ISO

Place of Origin : China

MOQ : 2 units

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100,000 pcs per month

Delivery Time : 3-5 working days

Packaging Details : Packed with standard carton box

Product : PLC

Input : 24VDC

I/O : 12DI/12DO

Output : Transistor

Analog : 2 inputs (max 6 in)

AI type : PT100 (others optional)

Program capacity : 32000 steps

Software : GX Works2

Contact Now

DC24V Transistor Outputs PLC Logic Controller 32K Steps Program Capacity

PLC Logic Controller Temperature Controllers Programmable Control 24VDC Transistor Outputs

Coolmay PLC integrated I/O, communication serial ports. It is a control system using electronic operations. Its easy storing procedures, handy extending principles, timed counting and input/output control are widely applied to the field of industrial automation control.

The PLC logic controllers offer high-speed, stable and highly reliable applications in all kinds of industrial automation machines. In addition to fast logic operation, bountiful instructions and multiple function cards, the cost-effective PLC also supports hand-in-hand RS485 master-slave networking.

Features

  • Highly integration.
  • Support special encryption
  • 32K steps of program capacity
  • 32K power-failed holding registers
  • Support interrupting, linear arcinterpolation and PID auto-tuning
  • Use 5.0mm pitch pluggable terminals for easy wiring
  • DlN rail (35mm wide) and mounting holes for installation
  • Compatible with FX3G/FX2UFX3S series PLC, operation speed more fast

Specifications

Dimension 130*90*36mm
Cutout size 122*99mm
Installation Fixed hole installation and DIN-Rail (35mm )
I/O level

Input: Passive NPN, public terminal isolated

Transistor output: NPN
Digital I/O 12DI/12DO
DO type

Transistor output, max load 500mA
High speed counting

Single phase 6 channel 60KHz
High speed pulse 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz
High-speed counting + high-speed pulse < 480KHz
Analog I/O (optional) 6AI/4AO
AI type (optional) Type E/E_/K/K_/S/S_/T/T_/J/J_ thermocouple / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ 0~10V/ 0~5V/ 0-20mA/ 4-20mA/ -5V~5V/ -10V~10V
AO type (optional) 0~10V/ 0-~5V/ 0~20mA/ 4~20mA/ -5~5V/ -10~10V (2DA for 1 minus voltage)
Default

1 Mini type B USB programming port, 1 RS232 programming port

(Interface terminal is mouse female port with 8 holes), 2 RS485 COM ports
Optional

Default 2 RS485 COM ports can be customized as 1 RS485, 1 RS232 COM ports,

or 1 RS485 COM port, 1 CAN (2.0A/B), or 1 RS232 COM port, 1 CAN (2.0A/B)
Software Compatible with WORKS 2

Packing and Shipping

  • Lead time: 3 days for samples, 30~60 days for bulk order.
  • Packing: standard export carton 5 layers
  • Shipping: DHL/ UPS/ FedEx/ EMS…

OEM & ODM

  • MOQ is 200 units.

Wiring

  • Digital input Digital output

DC24V Transistor Outputs PLC Logic Controller 32K Steps Program Capacity DC24V Transistor Outputs PLC Logic Controller 32K Steps Program Capacity

  • Analog wiring

DC24V Transistor Outputs PLC Logic Controller 32K Steps Program Capacity

DC24V Transistor Outputs PLC Logic Controller 32K Steps Program Capacity
